TubeSpin 360 Product Overview
The Powered Tube Spinning Cutter provides clean, efficient, and consistent cutting performance on tubing from 1/4" to 6-5/8" OD for specified materials and unit models. Eliminate saws and chips while achieving faster, square cuts with your existing tube cutters.
Our Process
HOW IT WORKS
THREE STEPS. ONE TOOL.
Mount
Mount the TS360 on your preferred table, tripod or ground mount. Set your tubing on standard roller pipe stands and secure it to the TubeSpin360 spinner using the included collet set. Fits 1/4" to 1.125" OD standard with optional chucks up to 6 5/8" OD.
Spin
Use the foot pedal to start spinning the tube at your preferred speed. Attach your own hand-held tube cutter and begin the cut. Hands-free speed control lets you focus on the work at hand.
Cut, Ream, Deburr
Speed up the spinner for a fast and clean cut. Ream and deburr the tube end before removing. Three operations - 1 setup and you're ready for brazing, soldering or pressing.
Product Lineup
OUR PRODUCTS
Each product is engineered to exceed industry standards and deliver measurable performance gains in the field.

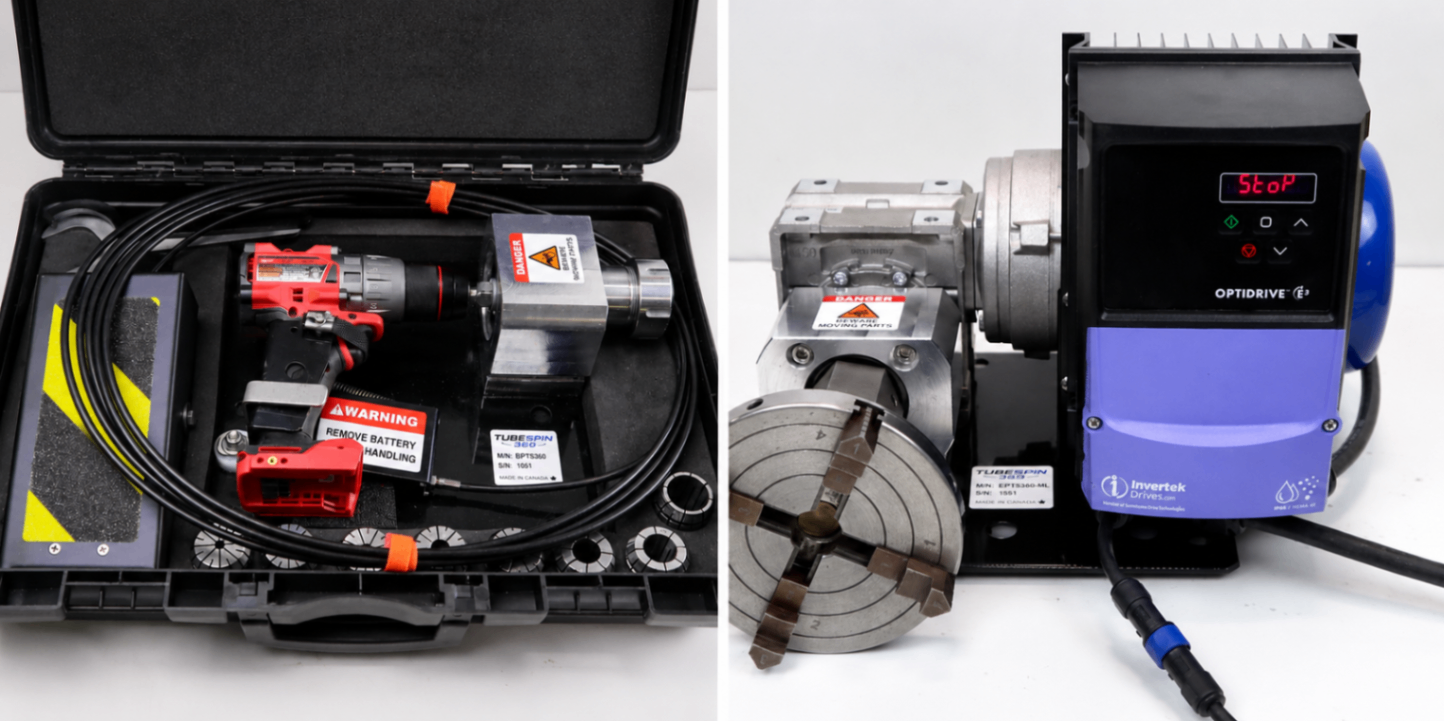

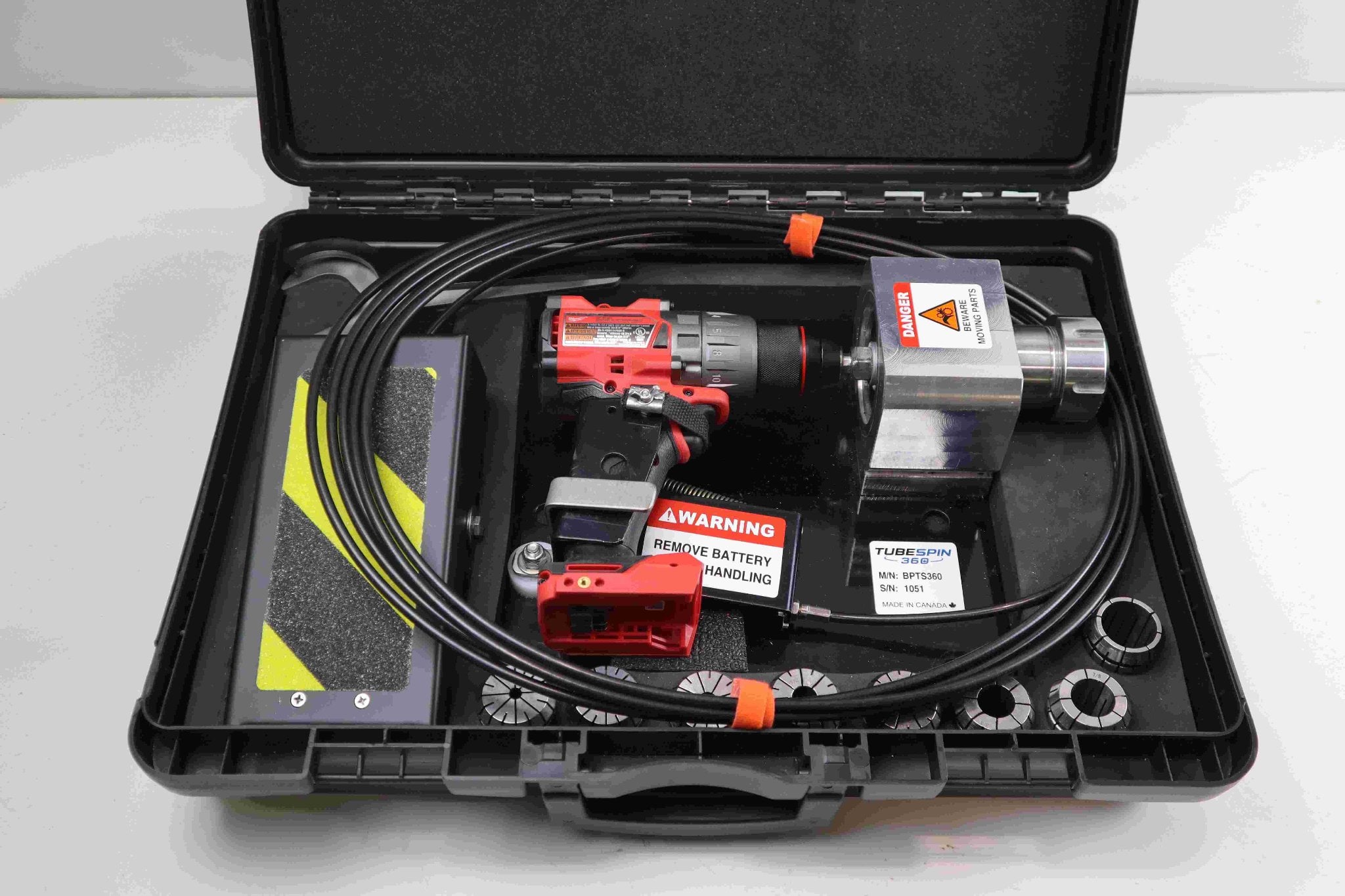

BATTERY POWERED
POWER SOURCE
Recommended Cordless Drill/Driver or Operators Drill/Driver.
RPM
0 to 500 RPM on Low Speed (Adjustable).
TORQUE
Up to 110 FT/Lbs.
ELECTRIC / HIGH SPEED / MEDIUM TO LOW TORQUE
POWER SOURCE
115 Volt, 60Hz, 1Phase, 15A-20A.
RPM
0-175 RPM.
TORQUE
Up to 30 FT/Lbs.

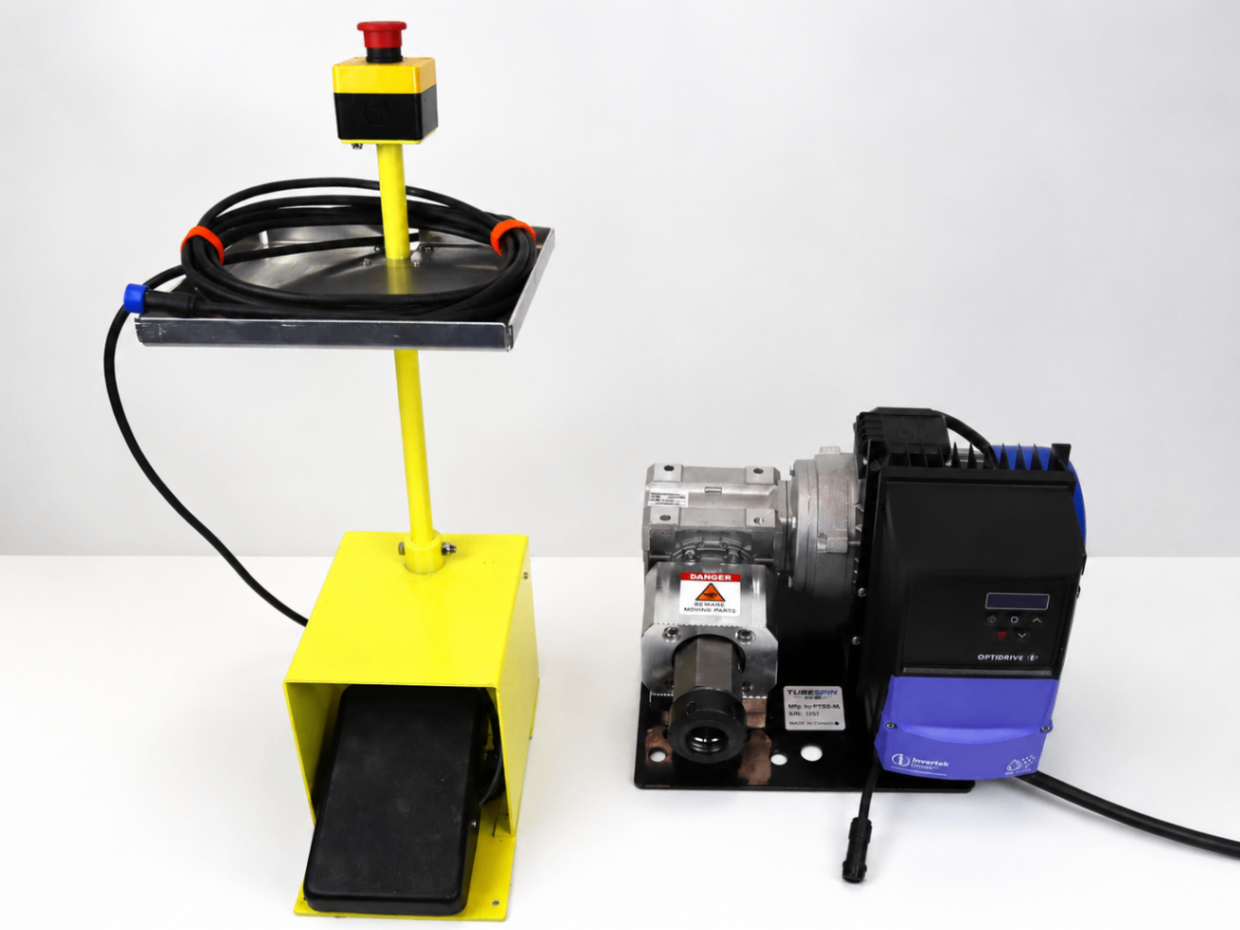

ELECTRIC / LOW SPEED / HIGH TORQUE
POWER SOURCE
115 Volt, 60Hz, 1Phase, 15A-20A.
RPM
0-123 RPM.
TORQUE
Up to 45 FT/Lbs.
CUTTING CAPACITY
Up to 5" OD Tube With Optional 4" Chuck.
CUTTING CAPACITY
Up to 5" OD Tube With Included 4" Chuck. 6" Sch. 80 PVC With Optional 6" Chuck.
CUTTING CAPACITY
Up to 6 5/8" OD Tube With Included 6" Chuck.
Industry Applications
BUILT FOR THE TRADES
THAT BUILD EVERYTHING ELSE
Validated across HVAC, plumbing, refrigeration, mechanical, instrumentation, ornamental, hydraulic, and exhaust applications.

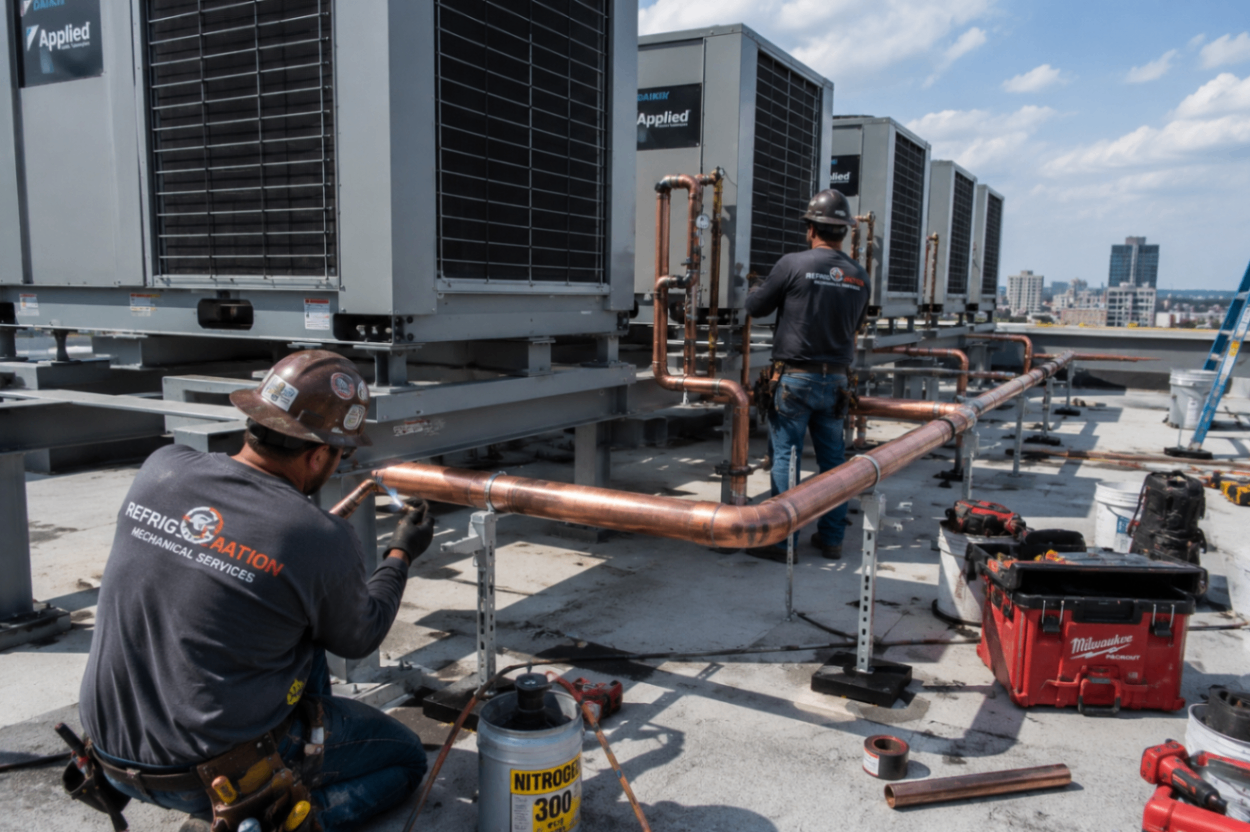

HVAC/R
Cut and ream ACR tubing from 1/4" to 5-1/8" with speed and precision. Ideal for rooftop installations where handheld battery-powered cutters may be undersized for larger tubing or oversized for smaller sizes such as 1/4", 5/16", and 3/8".

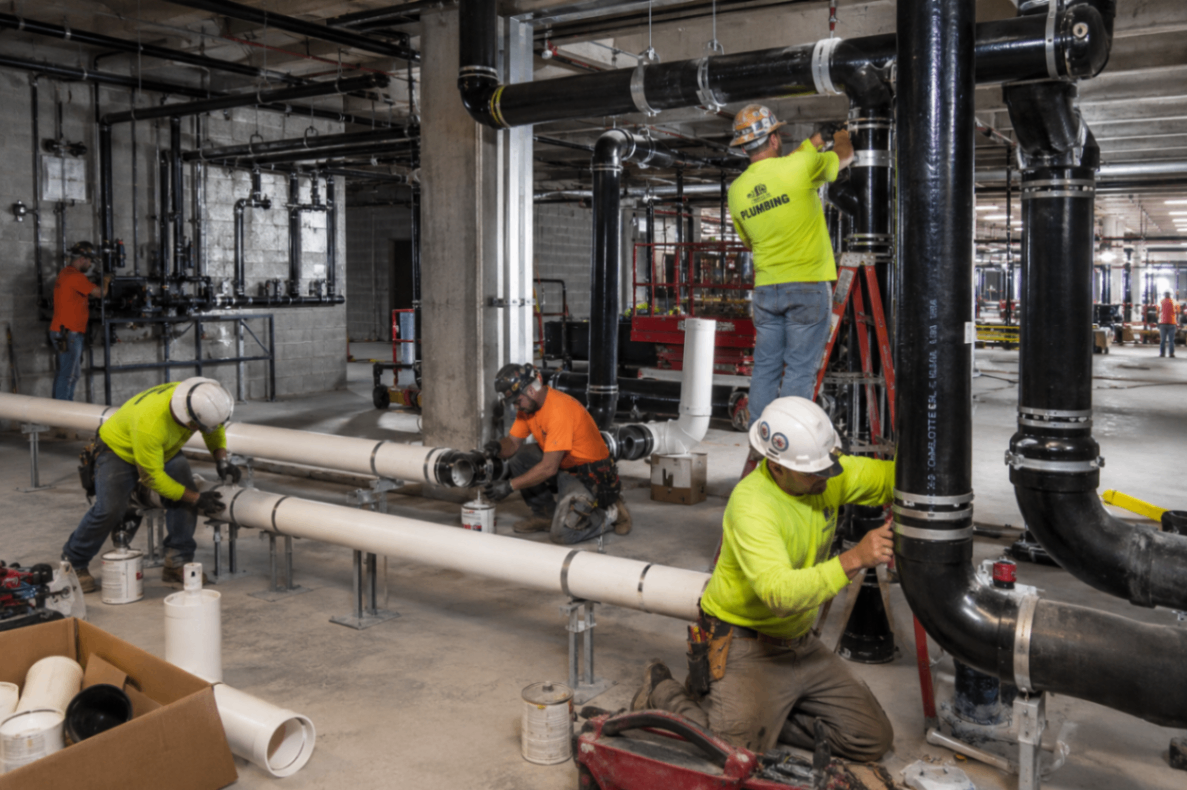

Plumbing
Compatible with PVC, HDPE, copper, stainless steel, titanium, and steel tubing up to 7" O.D. If you have the tube cutters, we can spin it.

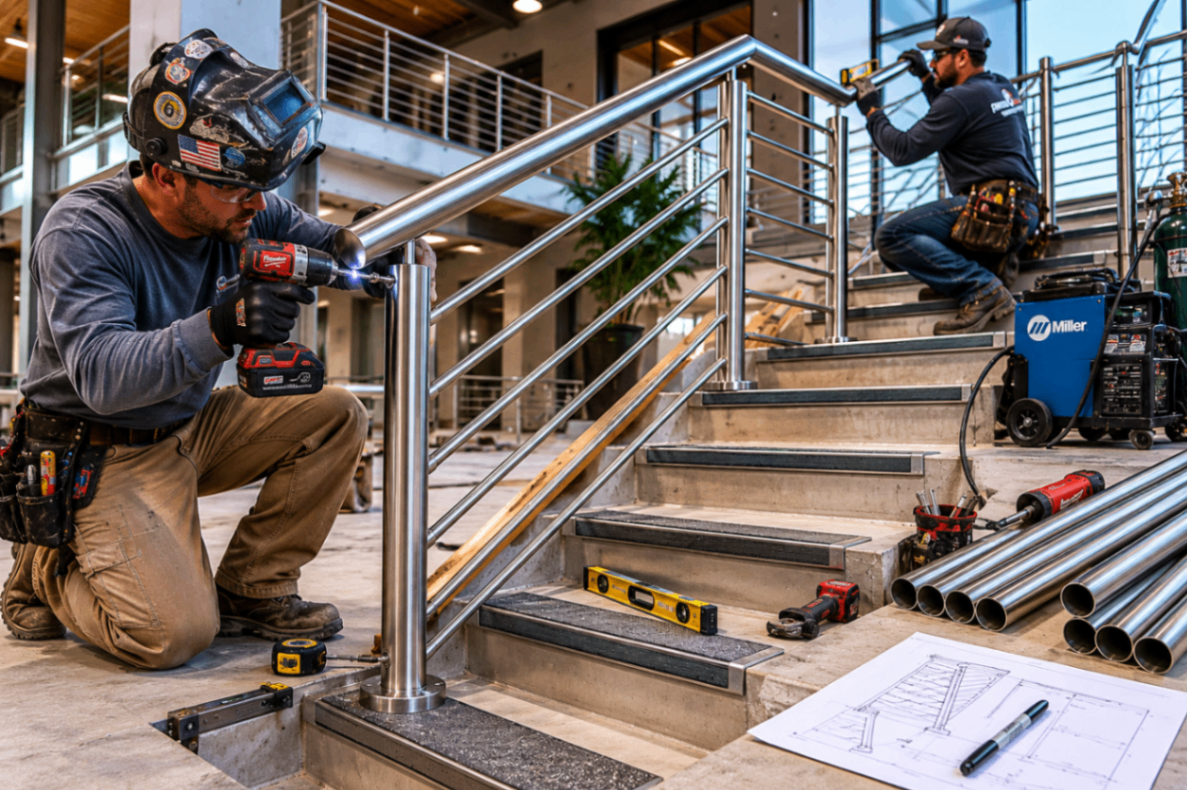

Ornamental Tubing
Secure the tubing from the inside to maintain a clean, mark-free outside surface.
Mechanical & Industrial
Ideal for titanium heat exchanger manufacturing, stainless steel and steel hydraulic piping and process water installations.

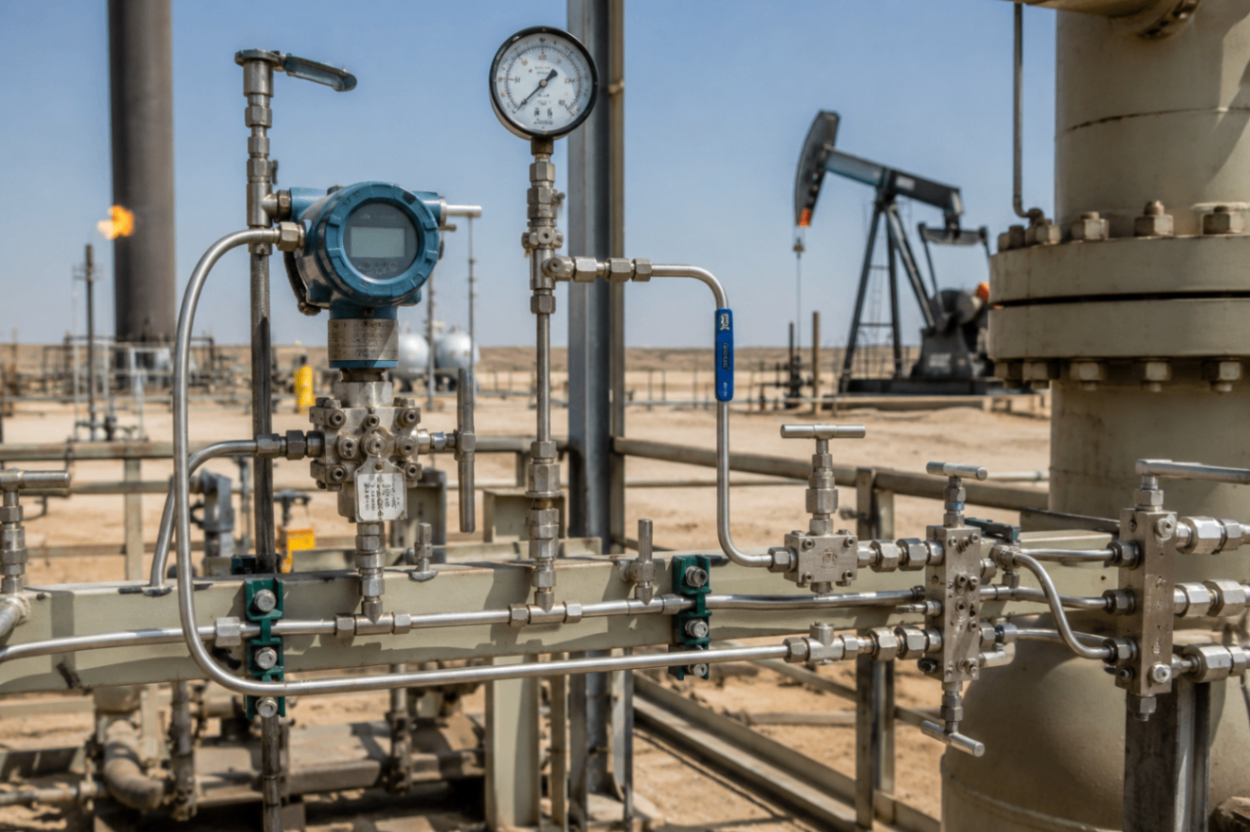

Instrumentation
Cut and prepare small bore tubing from 1/8" O.D. and up for instrumentation installation and industrial control systems.
Other

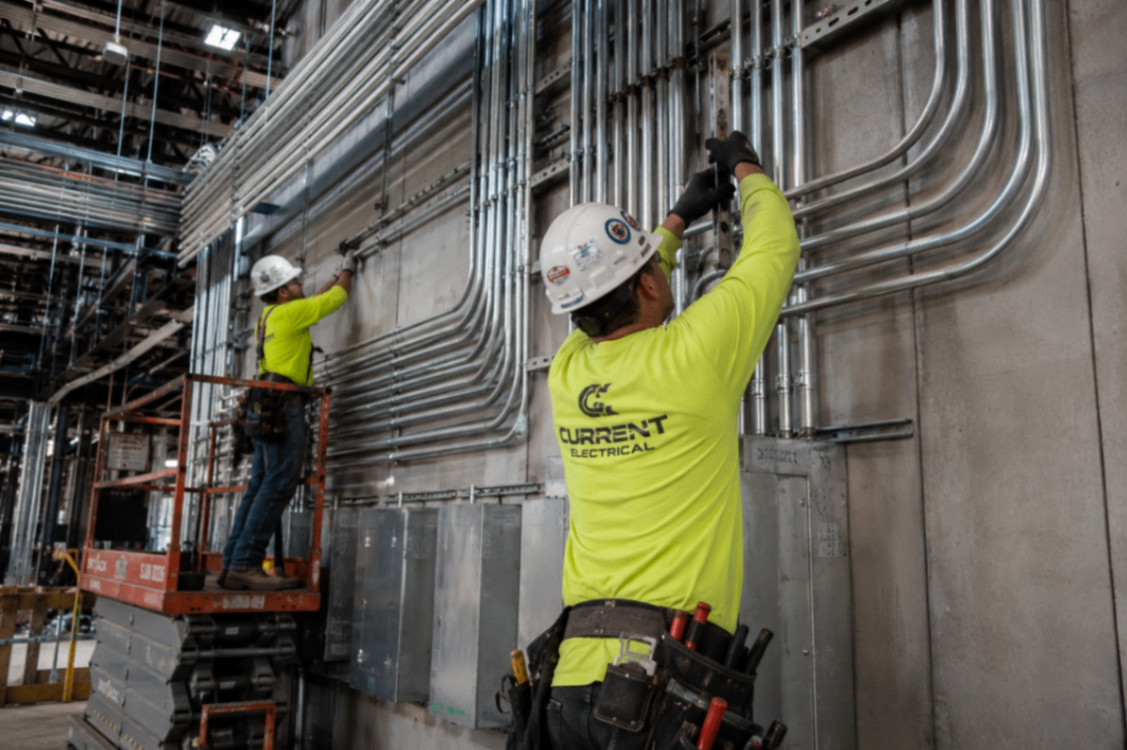

Electrical conduit, exhaust tubing, auger sleeves and irrigation tubing.
SPECIFICATIONS
TECHNICAL DATA
Tested Materials
| Material | BPTS360 | EPTS360HS | EPTS360LS |
|---|---|---|---|
| Material | Pipe Size / Wall Thickness | Pipe Size / Wall Thickness | Pipe Size / Wall Thickness |
| Stainless Steel | 5" / .085" | 5" / .100" | 6.625" / .125" |
| Carbon Steel | 5" / .085" | 5" / .100" | 6.625" / .125" |
| Copper | 5.125" / .125" | 6.125" / .125" | 6.625" / .158" |
| Copper Nickel | 4.5" / .100" | 5.5" / .125" | 6.625" / .134" |
| Aluminum | 5" / .125" | 5.5" / .134" | 6.5" / .134" |
| Titanium | 5" / .085" | 5" / .100" | 6.625" / .120" |
| PVC | 4" SCH80 / 5" SCH40 | 6" SCH80 | 6" SCH80 |
All Models
Specifications subject to change. General purpose specifications: material makeup and thickness may affect cutting performance.
Get Started
READY TO PUT THE TUBESPIN 360 ON YOUR JOBSITE?
Whether you are a technician looking for a faster way to cut and prep tubing, or a distributor looking for the next must-stock tool, we want to hear from you.
Distribution
BECOME A TUBESPIN 360 DEALER
We are building a network of wholesale distributors and authorized dealers across North America. If you are a distributor, buying group, or mechanical contractor looking to stock the next standard in powered tube cutting, we want to hear from you.
Our Story
BUILT BY TRADESPEOPLE,
FOR TRADESPEOPLE.
TubeSpin 360 was engineered in Saskatchewan by tradespeople with decades of field experience — people who knew there had to be a better way to cut, ream, and deburr tubing on the job.
Based in Saskatchewan, Canada. Three models available: BPTS360 (battery powered), EPTS360HS (electric, hi speed), and EPTS360LS (electric, high torque).
